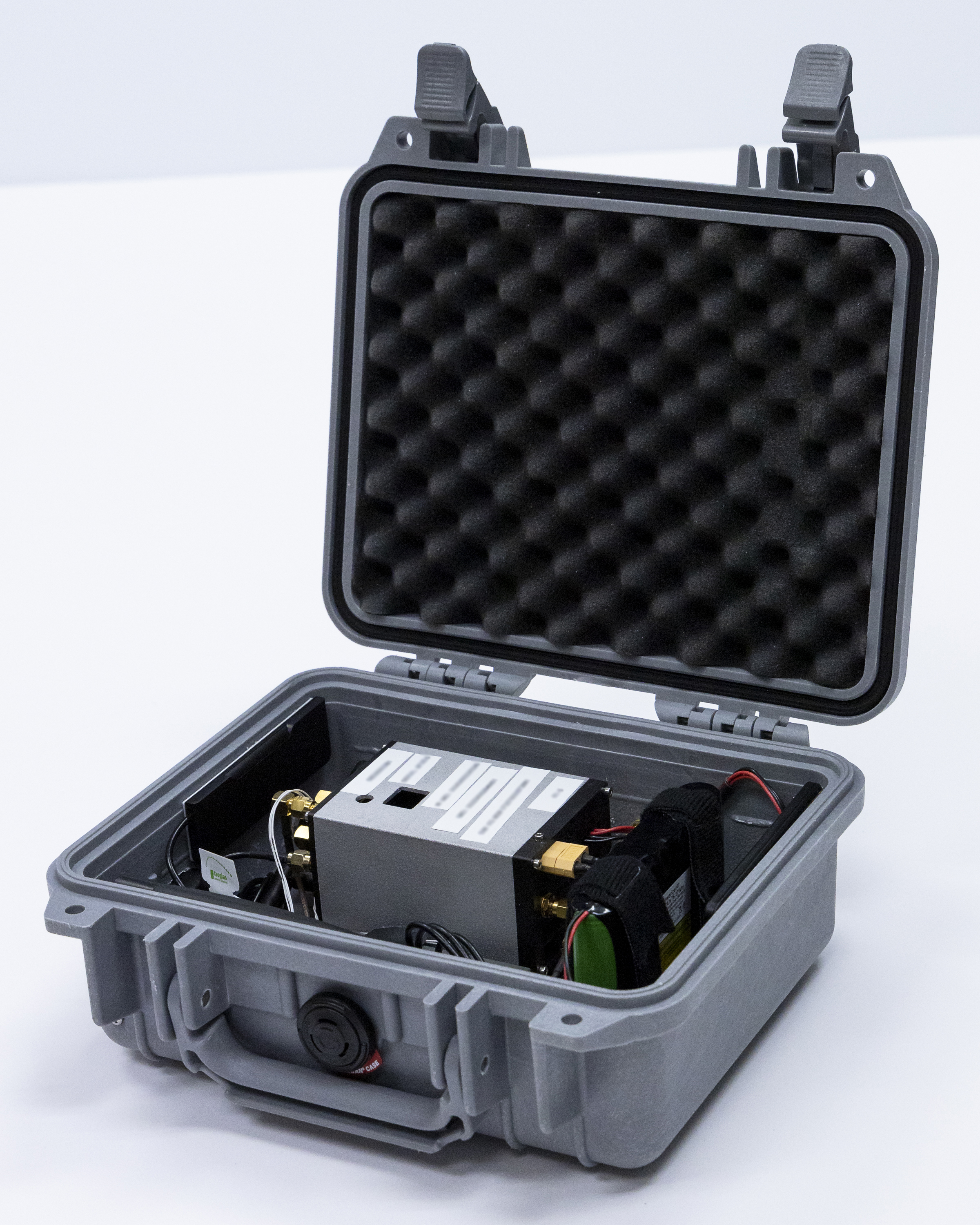

T-STAR system in the carrying case
The Transport Security Tracking and Reporting (T-STAR) system provides location, operation, and security-sensor status at regular, user-defined intervals as well as immediate alerts for assessing the security of high-consequence shipments.
Packaged in two remarkably adaptable designs and offering a variety of antenna configurations for accommodating various conveyances, the T-STAR core riding with the shipment communicates with a cloud-based server primarily via GSM messages.
T-STAR can also use iridium satellite communication when needed. The server can send alerts to authorized users (shippers, carriers, responders, or regulators) via email and text message. These users can also monitor the shipment using the web-based user interface.
T-STAR’s two modular designs, saddle and bolt-on (pictured above), adapt to all conveyance types, including trailers, and are easily positioned without the need for modifications. The lithium-ion battery operates the system which accepts a wide range for recharging: battery (12V or 24V), wall output, or portable charging station.
FEATURES:
DETECTION:
- Immediate tamper- and intrusion-detection alerts
- Alarm notification within 1 minute
PORTABILITY:
- Two variations with quick install/uninstall for all conveyance types
- Wireless security sensors
- Single button phone app or remote arming capability
- Easy preshipment setup and security sensor pairing testing
- Interfaces for door switches, motion detectors, and vibration sensors
- Long battery life
SECURE COMMS:
- Amazon Cloud or standalone server
- End to end encryption
LIVE REPORTS:
- Web based dashboard with map interface
- Geofencing and redundant GPS
- Configurable alerts via email and SMS
- Shipment history
- Multiple language support
T-STAR uses a communications control unit and a suite of wireless COTS security sensors placed in a conveyance to provide cost-effective, modular transport security. The suite of sensors adapts to ocean, road, or rail transport vehicles or temporary storage buildings.
A Wi-Fi-connected Android app is used to locally configure settings, test security sensors, and arm the system without a server connection. T-STAR includes
- Weatherproof case with indicator lights and fob
- Android control panel
- Suite of applicable security sensors
- Charging cable
The smartphone- or computer-accessible web-based dashboard allows sensor nodes to be remotely configured, user roles to be assigned, and alerts and notifications to be configured. The intuitive interface uses live mapping to track shipments and shows system state; time since last communication; and pending, unacknowledged alerts.
T-STAR uses a communications control unit and a suite of wireless COTS security sensors placed in a conveyance to provide cost-effective, modular transport security. The suite of sensors adapts to ocean, road, or rail transport vehicles or temporary storage buildings.
A Wi-Fi-connected Android app is used to locally configure settings, test security sensors, and arm the system without a server connection. T-STAR includes
- Weatherproof case with indicator lights and fob
- Android control panel
- Suite of applicable security sensors
- Charging cable
The smartphone- or computer-accessible web-based dashboard allows sensor nodes to be remotely configured, user roles to be assigned, and alerts and notifications to be configured. The intuitive interface uses live mapping to track shipments and shows system state; time since last communication; and pending, unacknowledged alerts.
