Researchers 3D print moon rover wheel prototype with NASA

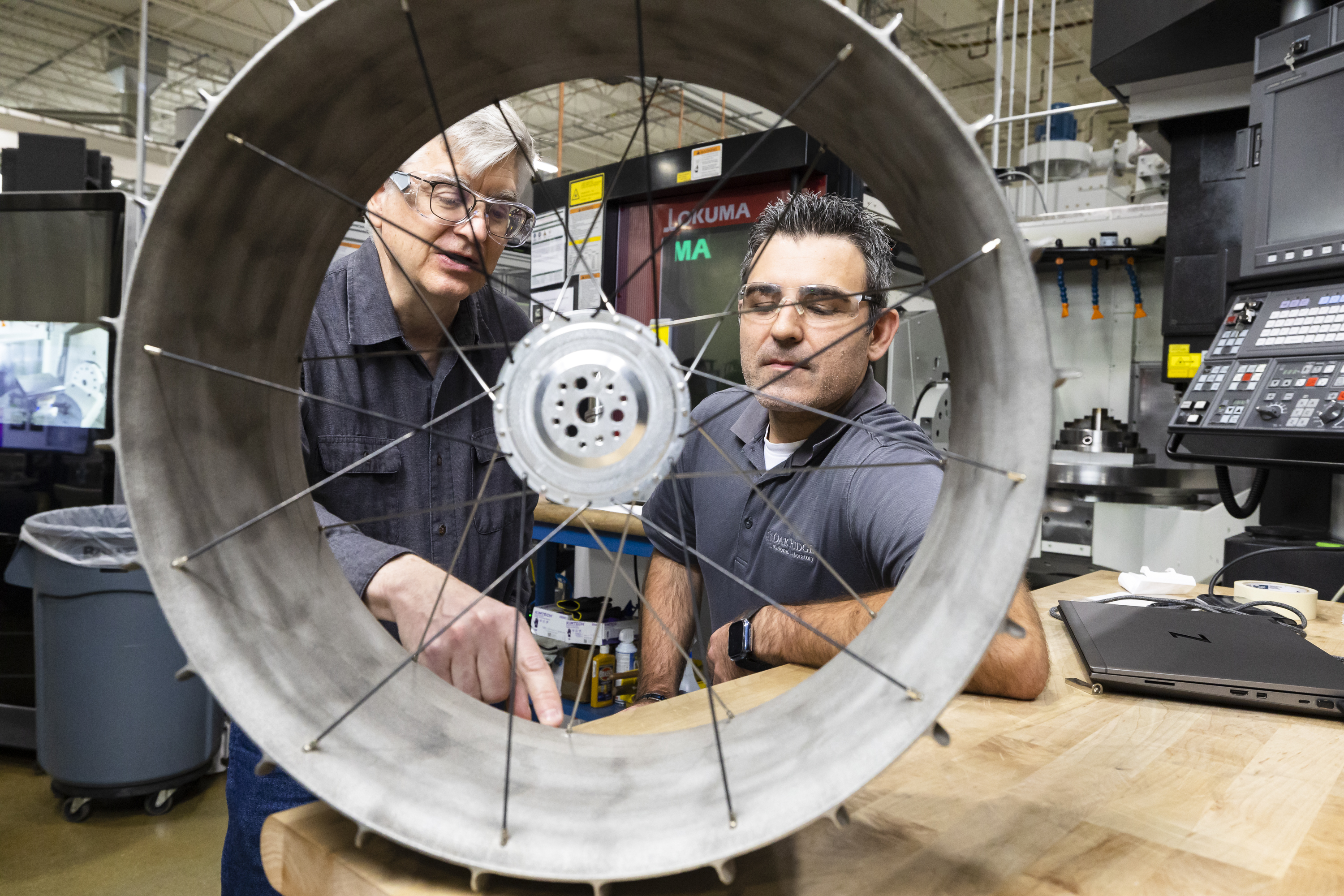

NASA mechanical design engineer Richard Hagen, left, and ORNL researcher Michael Borish inspect a lunar rover wheel prototype that was 3D printed at the Manufacturing Demonstration Facility. Credit: Carlos Jones/ORNL, U.S. Dept. of Energy

  • ORNL collaborated with NASA to 3D print a lunar rover wheel based on a NASA design.
  • The project demonstrated the potential of additive manufacturing for creating highly specialized parts needed for space exploration.
  • NASA plans to test the printed wheel’s performance to compare with a traditionally manufactured wheel that will be used on the moon next year.
  • The ORNL-printed wheel prototype was able to incorporate more design features and complexity into a single piece, while taking less time and manpower to make.


Researchers at the Department of Energy’s Oak Ridge National Laboratory, in collaboration with NASA, are taking additive manufacturing to the final frontier by 3D printing the same kind of wheel as the design used by NASA for its robotic lunar rover, demonstrating the technology for specialized parts needed for space exploration.

The additively manufactured wheel was modeled on the existing, light-weight wheels of the Volatiles Investigating Polar Exploration Rover, or VIPER, a mobile robot NASA plans to send in 2024 to map ice and other potential resources at the south pole of the moon. The mission is intended to help determine the origin and distribution of the moon’s water and whether enough could be harvested from the moon’s surface to support people living there.

Group photo
Members of the team that printed the rover wheel prototype display the result in front of the laser powder bed printer where it was created in the MDF. Credit: Carlos Jones/ORNL, U.S. Dept. of Energy



While the prototype wheel printed at DOE’s Manufacturing Demonstration Facility, or MDF, at ORNL will not actually be used on the NASA Moon mission, it was created to meet the same design specifications as the wheels made for NASA’s VIPER. Additional testing is planned to validate the design and fabrication method before using this technology for future lunar or Mars rovers or considering it for other space applications, such as large structural components.

close up of the spoke pattern and locking feature
Despite enabling a more complex spoke pattern and spoke locking features for the wheel, 3D-printing simplified and reduced the cost of the wheel design and made final assembly easier. Credit: Carlos Jones/ORNL, U.S. Dept. of Energy

Additive manufacturing can reduce energy use, material waste and lead time, while enabling design complexity and the tailoring of material properties. MDF is at the forefront of this effort, developing the technology for over a decade for a wide range of applications in the clean energy, transportation and manufacturing sectors. MDF researchers printed the rover wheel prototype at ORNL in Fall 2022. A specialized 3D printer used two coordinated lasers and a rotating build plate to selectively melt metal powder into the designed shape.

Typical metal powder bed systems operate in steps: In a machine the size of a cabinet, they rake a layer of powder over a stationary plate. Then a laser selectively melts a layer before the plate lowers slightly and the process repeats. The printer used for the rover wheel prototype is large enough for a person to enter and is unique in its ability to print large objects while the steps occur simultaneously and continuously, said Peter Wang, who leads MDF development of new laser powder bed fusion systems.

close up of wavy tread on wheel
Additive manufacturing allows fine design details, such as wavy tread on a domed shape, to be incorporated into the prototype lunar wheel. Credit: Carlos Jones/ORNL, U.S. Dept. of Energy

“This dramatically increases the production rate with the same amount of laser power,” he said, adding that deposition occurs 50% faster. “We’re only scratching the surface of what the system can do. I really think this is going to be the future of laser powder bed printing, especially at large scale and in mass production.” Wang and project team members recently published a study, found here, analyzing the scalability of the technology for printing components like electric motors.

Although the machine is unique, a key to the success of the project was researchers’ expertise in process automation and machine control. They used software developed at ORNL to “slice” the wheel design into vertical layers, then balance the workload between the two lasers to print evenly, achieving a high production rate, leveraging a computational technique recently submitted for patent protection.


ORNL researchers at the MDF monitored the printing of the prototype lunar wheel
ORNL researchers at the MDF monitored the printing of the prototype lunar wheel as two lasers melted metal powder to build it up, layer by layer. Credit: Carlos Jones/ORNL, U.S. Dept. of Energy



The prototype wheel, one of the first parts produced by the system, demonstrates the value of interagency collaboration. “The project with NASA really propelled the technology forward,” said Brian Gibson, the researcher who led the rover wheel project for ORNL, calling it a milestone. “It was great to connect a capability with a developing need, and the team was excited to be making a prototype component with space exploration applications.”

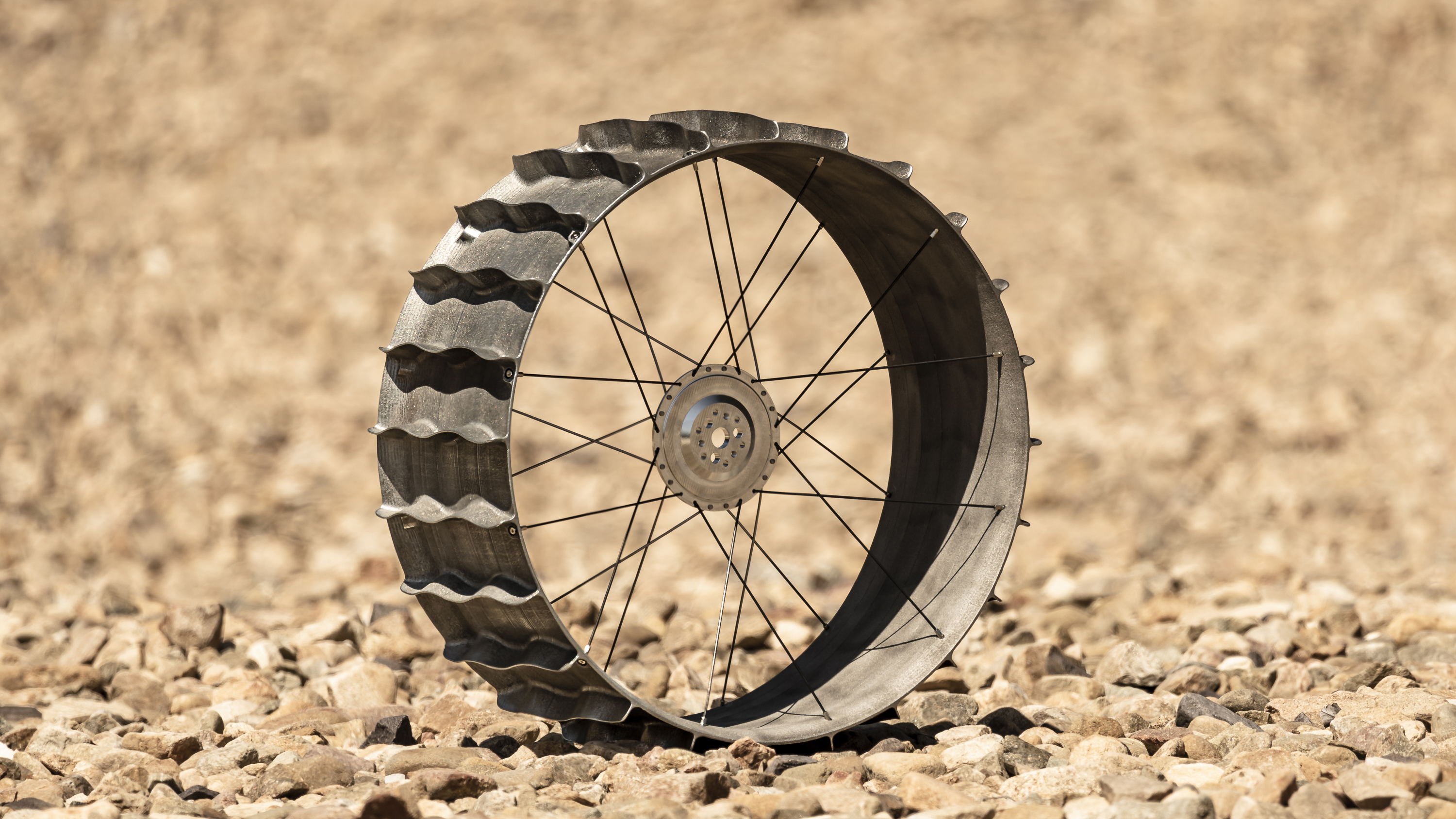

lunar rover wheel based on a NASA design
In just a few days, ORNL researchers used powder bed printing to create this lunar rover wheel based on a NASA design. Credit: Carlos Jones/ORNL, U.S. Dept. of Energy



The prototype wheel, one of the first parts produced by the system, demonstrates the value of interagency collaboration. “The project with NASA really propelled the technology forward,” said Brian Gibson, the researcher who led the rover wheel project for ORNL, calling it a milestone. “It was great to connect a capability with a developing need, and the team was excited to be making a prototype component with space exploration applications.”

Made of a nickel-based alloy, the prototype wheel is about 8 inches wide and 20 inches in diameter – much larger than typical parts printed with metal powder bed systems. Making it required the ability to print small geometric features spread over a large work area. Additive manufacturing enabled greater complexity in the rim design without added cost or manufacturing difficulty, Gibson said.

In comparison, the four VIPER wheels that will churn through moon dust next year required multiple manufacturing processes and assembly steps. VIPER’s 50-piece wheel rim is held together with 360 riveted joints. The manufacturing process required complicated and time-intensive machining in order to meet the mission’s rigorous requirements.

If NASA testing proves the 3D-printed prototype to be as robust as conventionally built wheels, future rovers could instead use a single printed wheel rim, which took ORNL 40 hours to manufacture. Through the project, ORNL and NASA engineers also explored printing precise design features, such as angled sidewalls, a domed shape and wavy tread to increase the wheel’s stiffness. These characteristics are difficult to incorporate in the current VIPER wheel design using traditional fabrication methods. Despite enabling a more complex spoke pattern and spoke locking features to the wheel, 3D printing simplified and reduced the cost of the wheel design and made final assembly easier.

“A lot of these wheel features were put in just to highlight what you can do with additive manufacturing,” said Richard Hagen, a mechanical design engineer for NASA and additive manufacturing lab manager at NASA’s Johnson Space Center in Houston. “It lets you easily implement design features that are hard to implement with traditional tooling or even a traditionally machined part.” ORNL’s ability to print large objects demonstrates the potential of additive manufacturing technology for producing much larger rover wheels for both lunar and Martian missions, Hagen said.

A challenge is that the specialized printer only builds with certain materials – in this case, a nickel-based alloy – so the 3D-printed wheel is 50% heavier than the aluminum VIPER wheel, while printed at a similar thickness.

NASA plans to test the 3D-printed wheel’s performance on a rover either in the rock yard at NASA’s Johnson Space Center or in a giant “sandbox” of simulated lunar rocks and soil at a contracted test facility. Evaluators will assess the wheel’s maneuverability, pivoting resistance, sideways slippage, slope climbing and other performance metrics.

Hagen said additive manufacturing offers the advantage of rapid design updates in response to testing. It can also incorporate more complexity, such as a suspension system, without adding weak points.

Hagen said crewed research stations placed on the moon as part of the agency’s Artemis Program will need off-planet manufacturing capability. “Being able to build parts in space for repairs will be important, because you just can’t take enough spares,” he said. “Powder, pellets or filament for printing are a lot easier to pack and would allow for more flexibility.”

“Additive manufacturing offers the flexibility that if you have the feedstock, you could make any replacement part you need, whether in space or on Earth,” Gibson said. This is a reason additive manufacturing has generated significant interest for a range of replacement needs, from rapidly manufactured tooling to hard-to-source castings and forgings. For space exploration and habitation, 3D printers could eventually use local material from the moon or Mars as a feedstock.

Other ORNL researchers involved in the project include Jay Reynolds, Gordon Robertson, Greg Larsen, Jamie Stump, Michael Borish, Chris Ledford, Ryan Dehoff and former ORNL staff member Charles Wade, with technical support from Ryan Duncan and Jeremy Malmstead. The research was funded by NASA and DOE’s Advanced Materials and Manufacturing Technologies Office, or AMMTO, and took place at DOE’s Manufacturing Demonstration Facility at ORNL. The facility is home to the MDF Consortium, a nationwide group of collaborators working with ORNL to advance state-of-the-art manufacturing technologies in the U.S. under the guidance of AMMTO.
